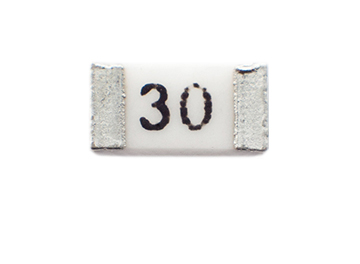

1206-FA 대전류 시리즈 표면 실장형 퓨즈: 제품 안내

•Fast Acting •3.10mm×1.55mm physical size; 제품 코드：1206-FA 소속유형：후막 표면 실장형 퓨즈 조회수：80442次 문의 전화：400-8456-633

샘플 을 신청

General

•Fast Acting

•3.10mm×1.55mm physical size

•Thick film manufacturing method, ceramic substrate, silver fusing element

•-50℃~125℃ operating temperature

•Excellent environmental integrity

•RoHS compliant

•Halogen-free

Application

•Battery pack

•PC related equipment and peripherals (Hard driver, Printer, etc.)

•Portable devices (Mobile phone, PDA battery charger, etc.)

•Digital camera (Digital still camera)

•Game equipment

•LCD monitor, LCD modules

•Wireless base station

Part Number	Marking	Curren tRating(A)	Voltag eRating	Interrupting Rating	Max Cold DCR*(Ω）	Typical I2T**(A²S)
S1206-FA-8.0A	8	8.0	32V DC	150A/32V DC	0.009	9.6
S1206-FA-10.0A	10	10.0	32V DC	150A/32V DC	0.007	15.0
S1206-FA-12.0A	12	12.0	32V DC	150A/32V DC	0.005	20.0
S1206-FA-15.0A	15	15.0	32V DC	150A/32V DC	0.004	33.7
S1206-FA-20.0A	20	20.0	32V DC	300A/32V DC	0.0018	48
S1206-FA-25.0A	25	25.0	32V DC	300A/32V DC	0.0013	70
S1206-FA-30.0A	30	30.0	32V DC	300A/32V DC	0.0011	90
