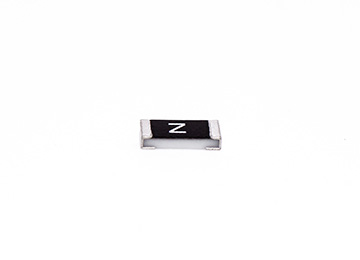

1206-F系列贴片保险丝
产品简介

系列: 1206-F
尺寸: 3.10mm×1.55mm
电流: 0.5A~7A
电压: 32V DC
特性: Fast Acting
安规: UL

产品编号:1206-F 所属类型:厚膜贴片保险丝 浏览次数:273578次 咨询热线:400-8456-633

    none.pngGeneral / 基本特征

    none.pngApplication / 产品应用

    dian.pngFast acting / 快断
    dian.pngThick film manufacturing method,ceramic substrate ,silver fusing element 厚膜制造工艺、陶瓷基板、银合金熔体
    dian.png3.10mm×1.55mm×0.55mm cuboid shape / 3.10mm×1.55mm×0.55mm长方体封装
    dian.png-55℃~125℃ operating temperature / -55℃~125℃的工作温度
    dian.pngExcellent environmental integrity / 良好的环境适应性
    dian.png RoHS compliant & Halogen Free / 符合ROHS标准,无卤素

    dian.pngBattery pack / 电池包
    dian.pngPC & PC peripherals / PC及PC外围设备
    dian.pngGame equipment / 游戏设备
    dian.pngLCD monitor,LCD modules / LCD显示器、LCD模块
    dian.pngWireless base station / 无线基站
    dian.pngPower supply / 模块电源
    dian.pngMedical equipment / 医疗设备










    none.pngDimensions / 外形尺寸


    Type

    型号

    L
    (mm)
    W
    (mm)
    T
    (mm)
    B
    (mm)
    S1206-F3.10±0.201.55±0.20
    0.55±0.200.50±0.20



    none.pngAgency/Certificate Information / 认证信息

    Agency
    认证机构
    File Number
    文件号
    Ampere Range
    电流范围


    E3195120.5A~7.0A



    none.pngElectrical Characteristics / 电气特性

    Ampere Rating
    电流规格
    % of Current Rating
    电流倍率
    Opening Time
    熔断时间
    0.5A~7.0A100%>4h
    0.5A~0.75A250%≤20s
    1.0A~7.0A250%≤5s
    0.5A~7.0A1000%>0.1ms



    none.pngElectrical Specifications / 电气规格

    Part Number
    型号
    Marking
    标记(A)
    Current Rating(A)
    额定电流(A)
    Voltage Rating(V)
    额定电压(V)
    分断能力Typical Cold DCR* (mΩ)
    典型直流冷电阻(mΩ)
    Nominal I²T** (A²s)
    公称热能值(A²s)
    S1206-F-0.5AF0.532

    50A@32VDC

    12000.0075
    S1206-F-0.75AG0.75325400.0169
    S1206-F-1.0AH1.0322400.0279
    S1206-F-1.5AK1.5321150.0491
    S1206-F-2.0AN2.032640.1251
    S1206-F-2.5AO2.532330.1255
    S1206-F-3.0AP3.032270.2880
    S1206-F-3.15AZ3.1532260.2977
    S1206-F-3.5AR3.53220.50.5366
    S1206-F-4.0AS4.032

    35A@32VDC

    15.50.8928
    S1206-F-5.0AT5.03212.50.9325
    S1206-F-6.0A66.03211.01.5192
    S1206-F-4.0AU7.0327.22.2050

    "*" Measured at≤10% rated current and 25℃ / 电阻应在小于等于10%额定电流及25℃环境下测量。
    "**" MeltingI2T at 10 times of rated current / I2T在10倍额定电流下测量。
